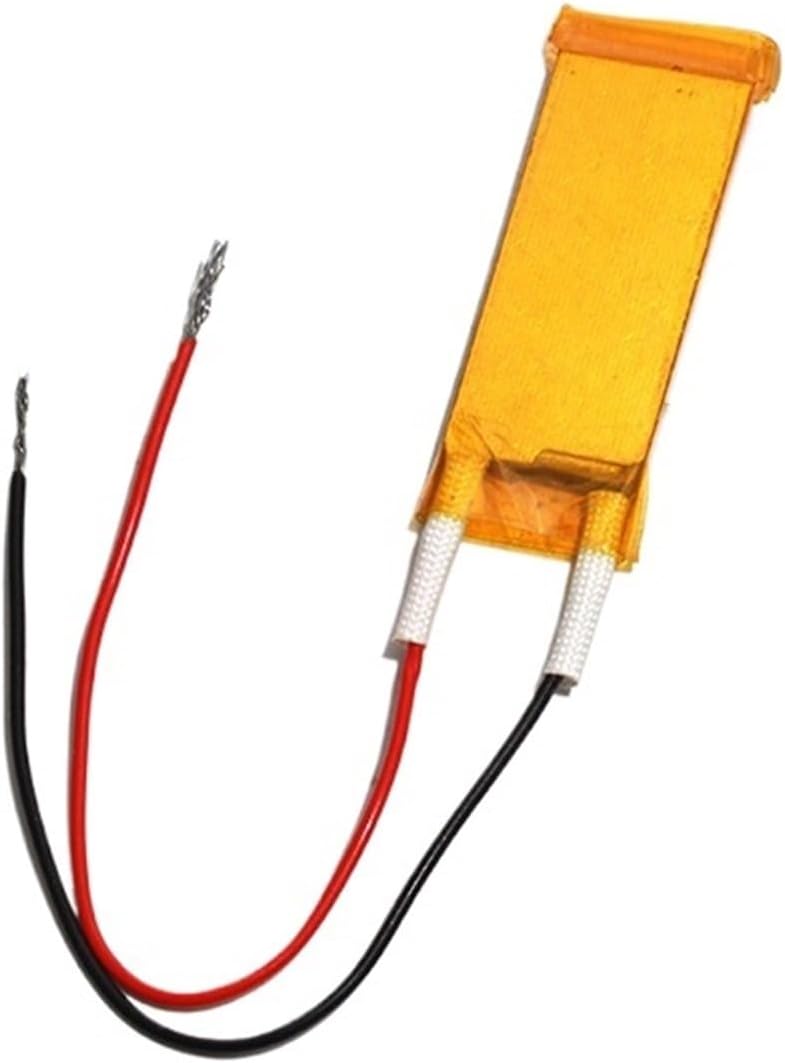

2PCS 35x15x3mm PTC Heating Plate, Insulated Film, 120-270°C Thermostat Heater Components(12V 120C 4-8W)

35x15x3mm PTC Heating Plate with Insulating Film Thermostat 120-270 Degree PTC Heater Components 2pcs/lot1. Size:35*15*3mm (LxWxT)2.Voltage: DC 12V 24V3.Temperature: 120-2704.Shell Material:High Temperature insulating film5.Heat Material: PTC Thermistor6.Lead Wire Length: about 10cm7.Advantage: Can long-term dry heat, heating fast, surface insulation8.Temperature Tolerance: ±109.Package:2PCS PTC heating elementsPay attention: Power Allowance-10%~+5%Notes:1. Advantages: dry burning, energy saving, constant temperature, long life, no open flame, suitable for micro equipment low-power depyretic, preheating and damp removal.2. Power supply: directly connected to the rated voltage, AC and DC, no positive and negative poles. Taking the 12V heating element as an example, it can be connected to AC and DC 12V, and the power supply current must be greater than the maximum heating current of the heating element, otherwise the heating element cannot be bred.3. Wattage: After the PTC heating sheet is energized, the power is small to large and then small, and finally stable.Stable power is directly related to heat dissipation, fast heat dissipation, power consumption is also more, we write the maximum dissipated power, the actual use of power is less than the maximum dissipated power.Your satisfaction is our greatest pursuit

• High-Temperature & Compact: This miniature 35x15x3mm plate delivers powerful, stable heating up to 270°C from a very small footprint.
• Integrated Insulation: Features a protective insulating film for enhanced electrical safety and direct application on various surfaces.
• Self-Regulating Thermostat Function: Built-in PTC technology acts as its own thermostat, maintaining precise temperature control without external sensors.
• Ideal Component Pair: Sold as a set of two, perfect for use in arrays, as backups, or for building multi-zone heating systems.
• Precision Industrial Use: Designed as a core heating component for scientific instruments, small appliances, electronics, and custom high-temperature projects.
